Frac Stack

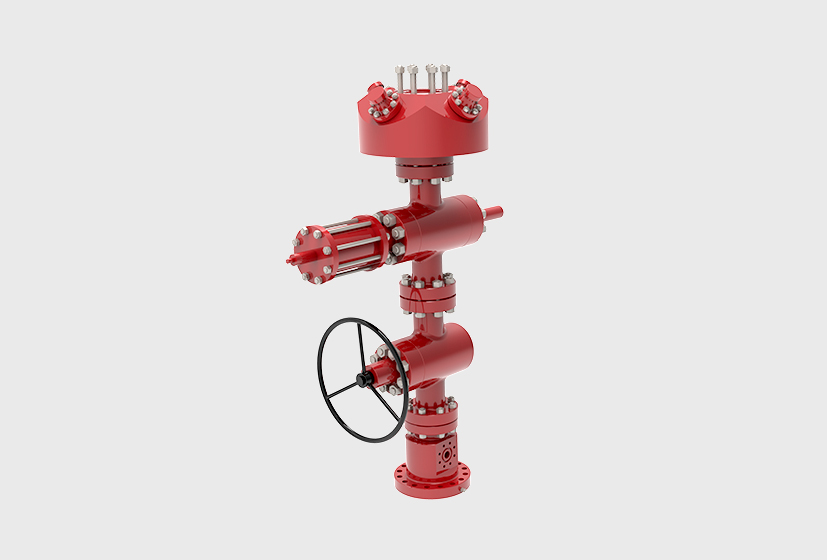

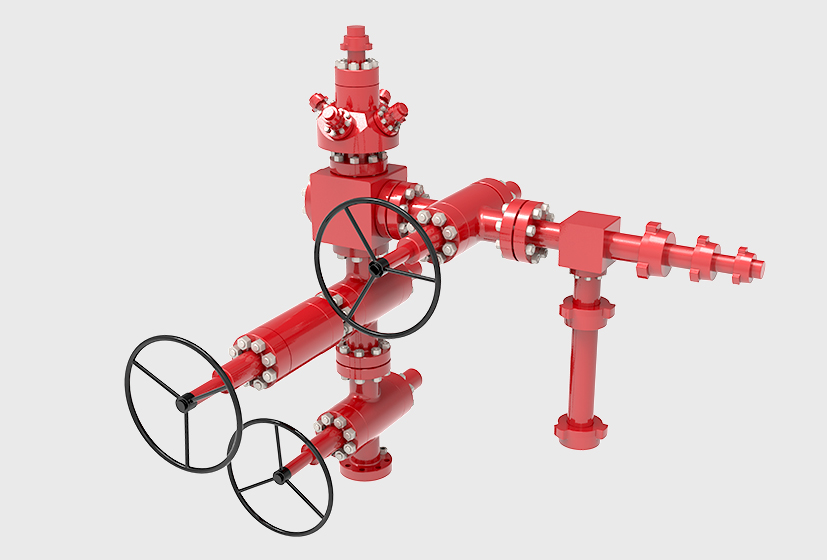

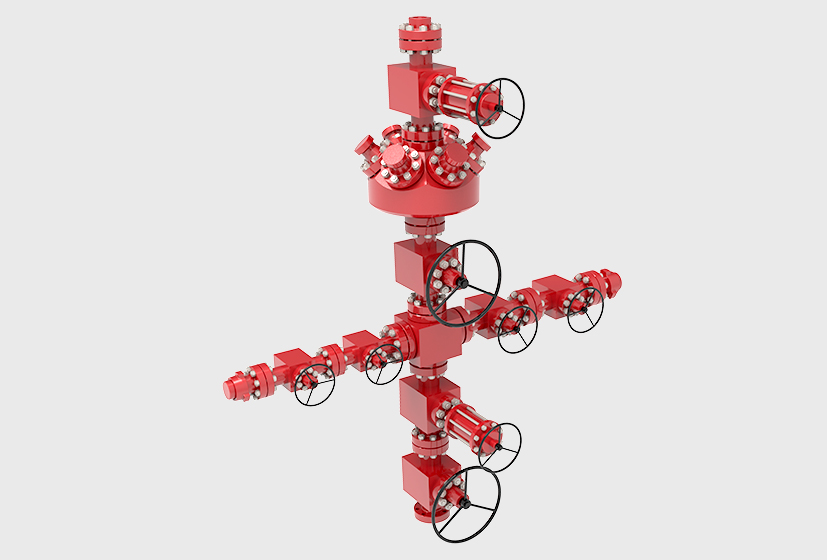

Frac Tree or Frac Stack is another type of Christmas Tree designed to handle high-pressure and high flowrates during hydraulic fracturing. Frac trees are designed for high pressure ratings up to 15000 psi (105 MPa) and made from construction materials as per API classification (AA-HH). For H2S-containing wells, Frac Stack assembly are made from sour-service construction materials. Typical Frac Stack consists of several API components, such as Frac Head (Goat Head), Cross, Upper & Lower Master Valves, Swab Valve, Tree Cap and Hammer Unions. Rein designs and supplies Frac Trees as per API 6A regulations, while sour-service series comply with NACE MR0175.

By the discovery of hydraulic fracturing technology and increased interest in shale gas production, demand for Frac Trees are increased exponentially. To keep up with increasing demand, Rein Wellhead Equipment recently increased production capacity, which allowed us to produce hundreds of sets of Frac Trees monthly. Rein guarantees good quality, fast delivery period, quality of service and favorable price. Production period of Frac Stacks are from 30 to 60 days depending on availability raw material in Rein’s warehouse. Price depends on client’s requirements to sizing, construction material and other specific requirements. Rein can deliver Frac Tree either by land or sea. Our facility is located near Lianyungang station and Shanghai port, which allows us to delivery Frac Stacks quickly either by land or sea.

Drawings of typical Frac Stack (Frac Tree) is given below:

Our Frac Trees are widely used both in domestic and international market. Feel free to contact Rein for technical assistance and quotation not only for Frac tree, but also for other oilfield machinery. Rein Wellhead Equipment is a manufacturer and supplier of Frac Trees (Frac Stacks) as well as other oilfield machinery.
