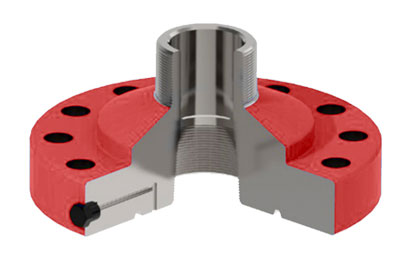

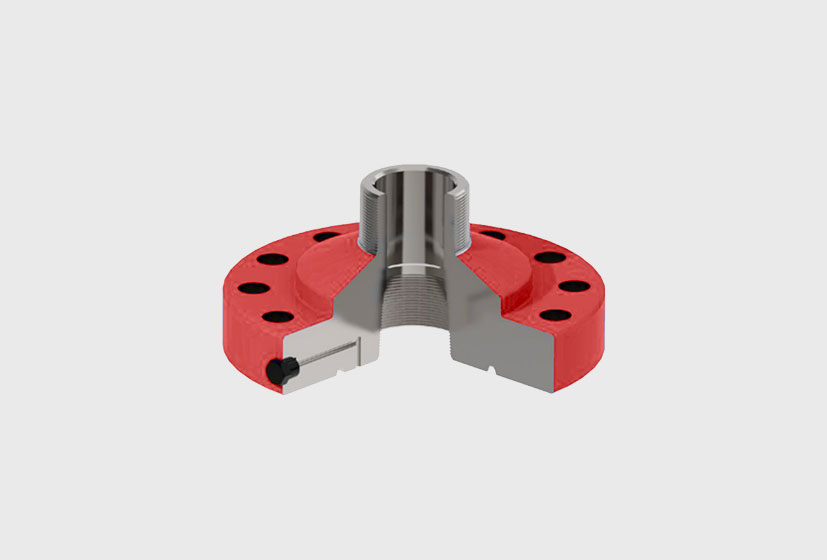

B-1 Tubing Head Adapter


Top and bottom connections are available in various sizes. Bottom connections are flanged with EUE 8rd suspension threads. The top connection is EUE 8rd male. Manufactured according to API-6A, PSL-1, DD, L-U, PR-1.


Bottom Flange

Threaded Top

Suspension Threads

Weight

(kg)

Size

(in)

Press.

(psi)

7.1/16”

2000

2.3/8” U PTBG

2.3/8” U PTBG

66

7.1/16”

2000

2.3/8” U PTBG

2.3/8” U PTBG

66

7.1/16”

3000

2.3/8” U PTBG

2.3/8” U PTBG

66

7.1/16”

3000

2.7/8” U PTBG

2.7/8” U PTBG

75

7.1/16”

5000

2.3/8” U PTBG

2.3/8” U PTBG

66

7.1/16”

5000

2.7/8” U PTBG

2.7/8” U PTBG

75

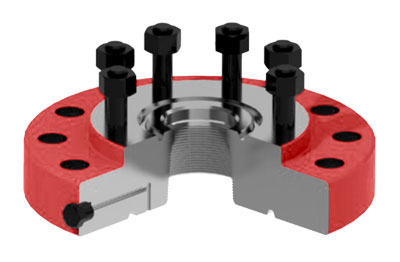

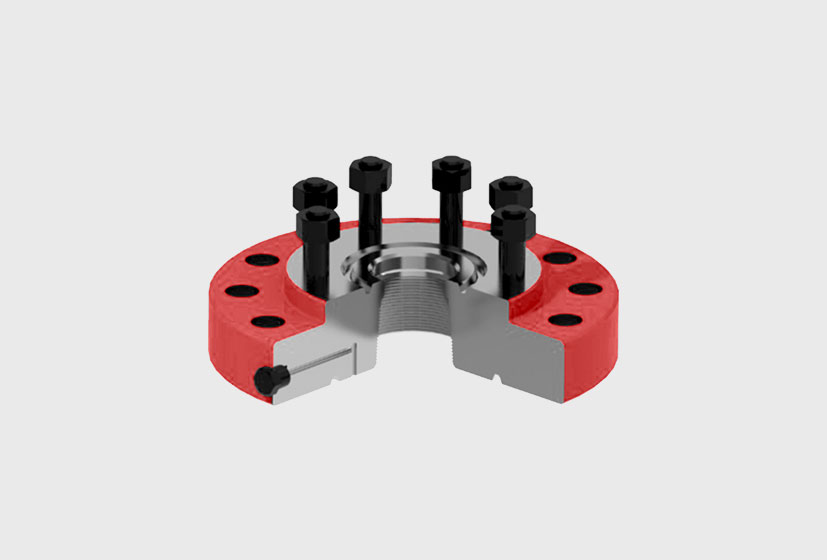

B2P Tubing Head Adapter


Top and bottom connections are available in various sizes. Bottom connections are flanged with EUE 8rd suspension threads. The top connection is studded. Manufactured according to API-6A, PSL-1, DD, L-U, PR-1.


Bottom Flange

Top Connection

Suspension Threads

Weight

(kg)

Size

(in)

Press.

(psi)

Size

(in)

Press.

(psi)

7.1/16”

3000

2.1/16”

5000

2.3/8” U PTBG

52

7.1/16”

3000

2.9/16”

5000

2.7/8” U PTBG

50

7.1/16”

3000

3.1/8”

5000

3.1/2” U PTBG

48

7.1/16”

5000

2.1/16”

5000

2.3/8” U PTBG

57

7.1/16”

5000

2.9/16”

5000

2.7/8” U PTBG

54

7.1/16”

5000

3.1/8”

5000

3.1/2” U PTBG

52

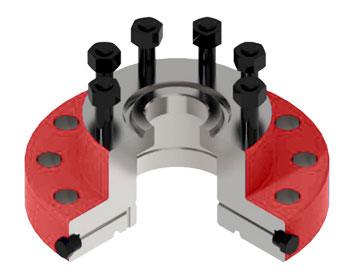

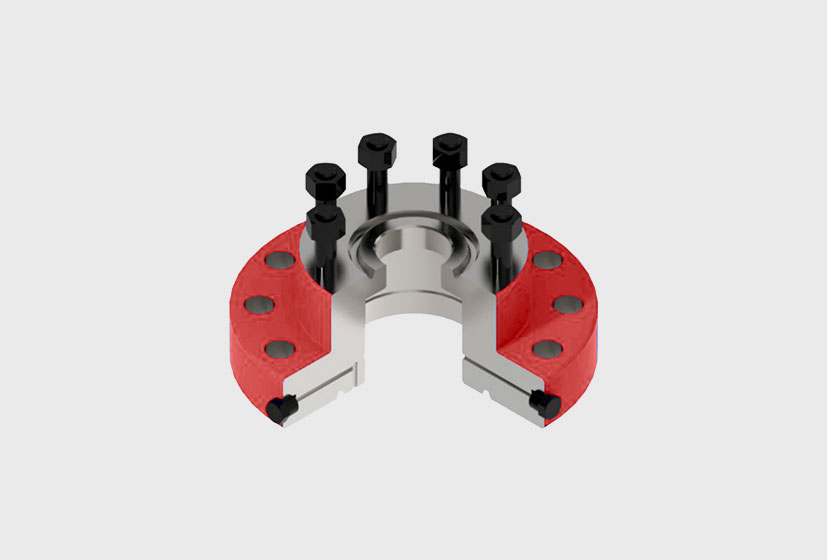

A5P Tubing Head Adapter


Top and bottom connections are available in various sizes. Bottom connections are flanged with an ID of 5-1/2” typically. The top connection is studded. Available with DHCL port upon request. Manufactured according to API-6A, PSL-1, DD, L-U, PR-1 (5,000psi) and API-6A, PSL-2, DD, L-U, PR-1 (10,000 psi).


Bottom Flange

Top Connection

Weight (kg)

Size (in)

Press. (psi)

Size (in)

Press. (psi)

7.1/16”

5000

2.1/16”

5000

81

7.1/16”

5000

2.9/16”

5000

79

7.1/16”

5000

3.1/8”

5000

95

7.1/16”

10000

2.1/16”

10000

80

7.1/16”

10000

2.9/16”

10000

79

7.1/16”

10000

3.1/8”

10000

102

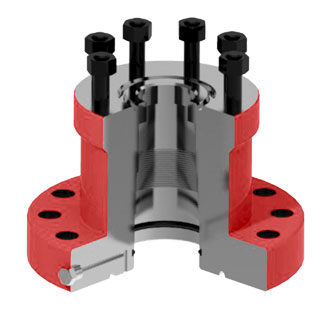

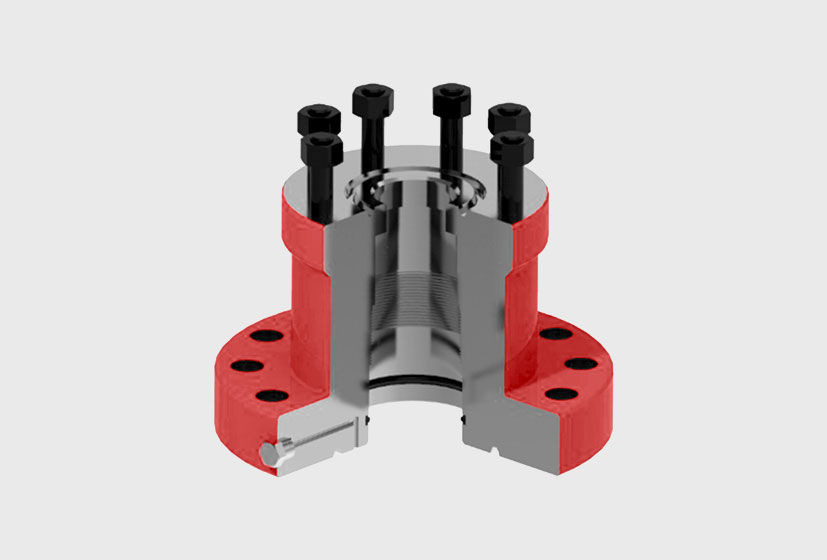

BO2 Tubing Head Adapter


Top and bottom connections are available in various sizes. Bottom connections are flanged with 4” Acme suspension threads. The top connection is studded. Manufactured according to API-6A, PSL-1, DD, L-U, PR-1.


Bottom Flange

Top Connection

Weight (kg)

Size (in)

Press. (psi)

Size (in)

Press. (psi)

7.1/16”

3000

2.1/16”

5000

91

7.1/16”

3000

2.9/16”

5000

98

7.1/16”

3000

3.1/8”

5000

102

7.1/16”

5000

2.1/16”

5000

91

7.1/16”

5000

2.9/16”

5000

98

7.1/16”

5000

3.1/8”

5000

102
