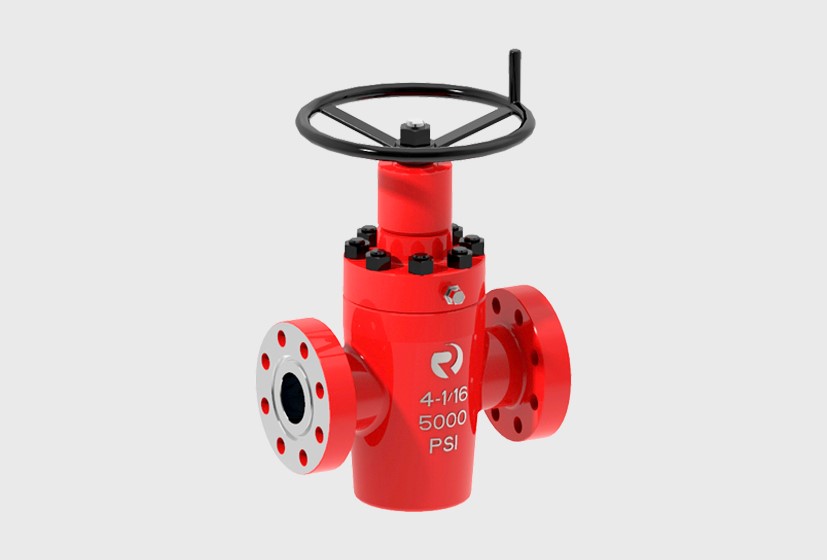

API 6A Slab Gate Valve

Slab Gate Valve is a special mechanical device used in oilfields and designed to control (close-open) flow stream. Slab Gate Valves are usually used as a component of oilfield equipment, which works under high pressure, such as Christmas tree, wellhead assembly, frac trees, choke manifold, kill manifold, debris catcher, sand filter, cyclone wellhead desander, line heater, etc. API 6A Slab Gate Valves are used during flowback, well testing, oil production. Slab Gate Valve is either operated manually or by hydraulic actuator.

Slab Gate Valve consists of following parts:

· Valve body

· Expanding Gate / Slab Gate

· Lubrication Fitting

· Stem

· Bonnet Seal Ring

· Seat

· Lubrication Fitting

· Thrust Bearings

· Bonnet Packing

· Packing Injection Fitting

· Valve Bonnet

· Handwheel / Actuator

· Lower Bonnet

· Steam Protector

· Lower Steam

· Ball Screw

Slab Gate Valve shall be based on operational and environmental conditions of are where slab gate valve is used.

Main Technical Specification

Note: Classes from DD shall be NACE MR0175/ISO 15156 compliant

Rein Wellhead Equipment (REIN WE) is the API 6A slab gate valve manufacturer in China, which offers wide variety of valve and valve assemblies. We strictly follow assigned codes & standards to meet the operational and environmental requirements of the clients. Feel free to contact us to receive quotation or technical assistance concerning API 6A slab gate valves and other oilfield equipment.
