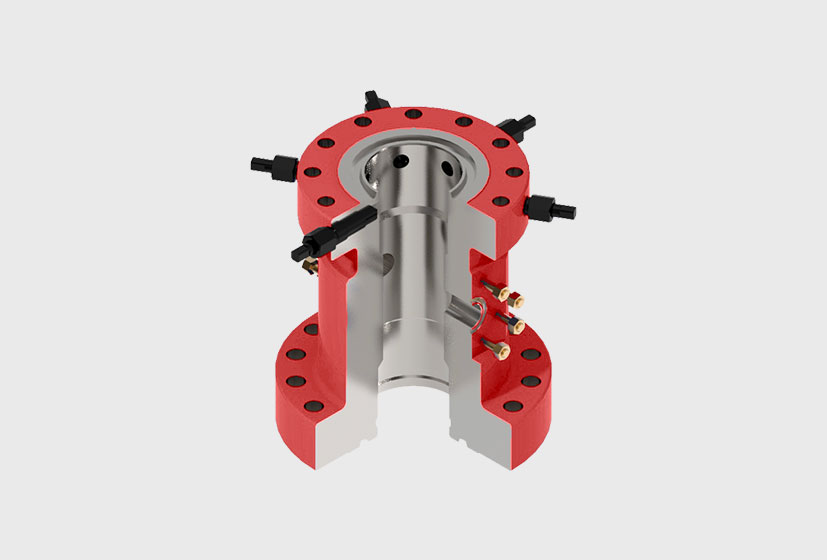

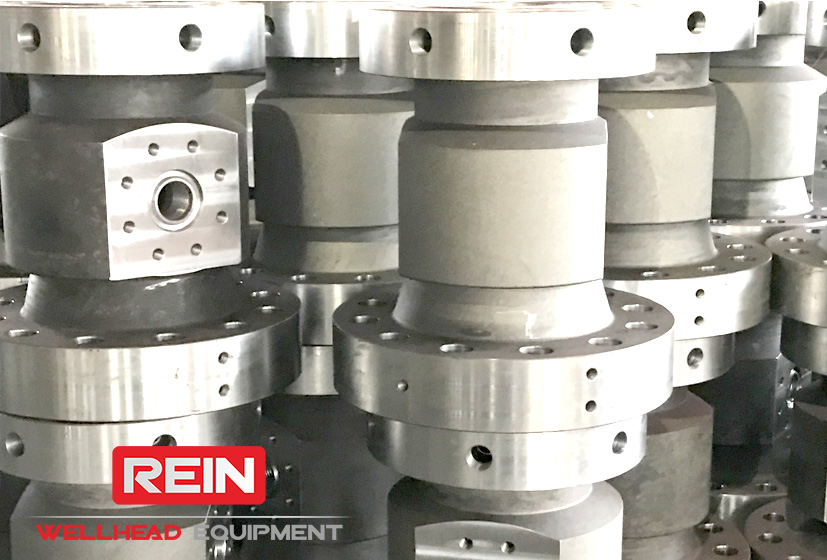

Tubing Head Spool

Rein's TCM tubing heads feature a versatile straight bore design for single and multiple completions. This design accepts all TC series tubing hangers and easily converts from a single completion to multiple completions with the addition and alignment pin(s).

Available Sizes

• l Available with 7-1/16” nominal bowl

• l Compatible with 7-5/8” production casing

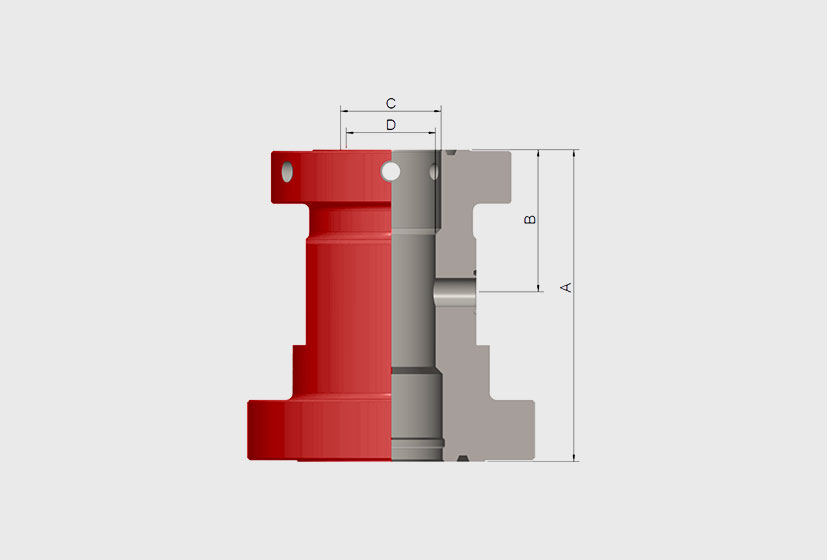

Straight-Bore Design

• l Features a 45° landing shoulder capable of supporting maximum loads

Outlets

• l Line Pipe Outlets

• l Studded Side Outlets

Tubing Hanger Compatibility

• WTCM tubing heads accept a wide variety of tubing hanger styles including mandrel and wrap-around

Availability

• l Additional sizes available upon request

• l Available with ET (Integral) style lock screws

• l Flanged top Tubing Heads available with slip-on weld or threaded bottoms

Bottom Preparations

• l PE/BG bottom, for use with PE secondary seal bushing (Standard)

• l HPE bottom, for use with HPE secondary seal bushing for high pressure applications (Available upon request)
