Swivel Joints

Swivel Joints

REIN’s Swivel Joints are designed and manufactured using high tensile alloy steel that is suited to handle some of the world’s most abrasive environments such as fracturing, cementing, acidizing, and other high-pressure applications.



REIN supplies a full range of swivel joints including a long-life long radius, short radius threaded and large quadrate swivel joints for sizes up to 8”.



All swivel joints can be supplied suitable for standard service or sour gas service in accordance with NACE MR 0175, suitable for operating temperatures of -22℉(-30℃) to 392℉(200℃). They come standard with fully traceable material certification and are supplied with their own unique identification number.

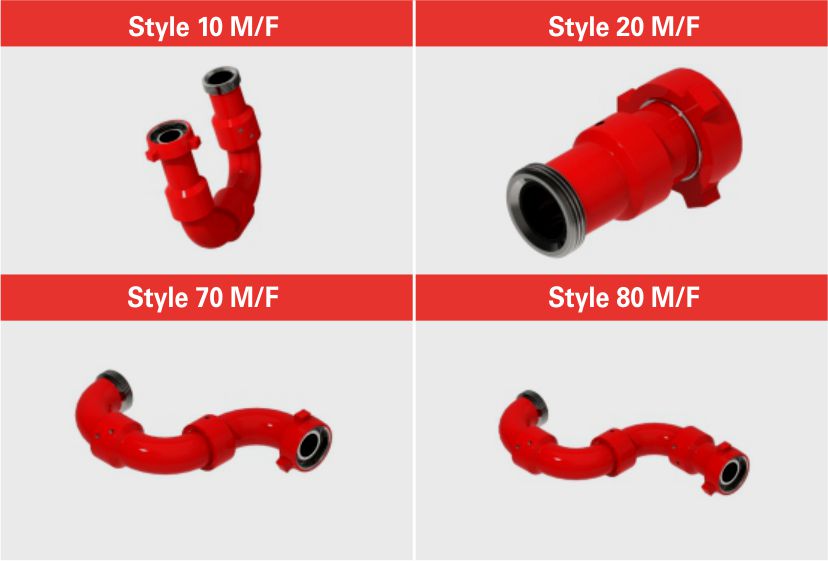

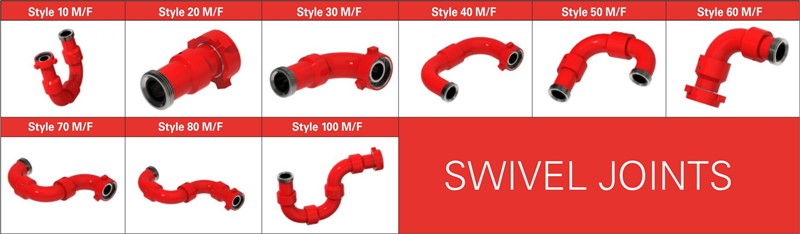

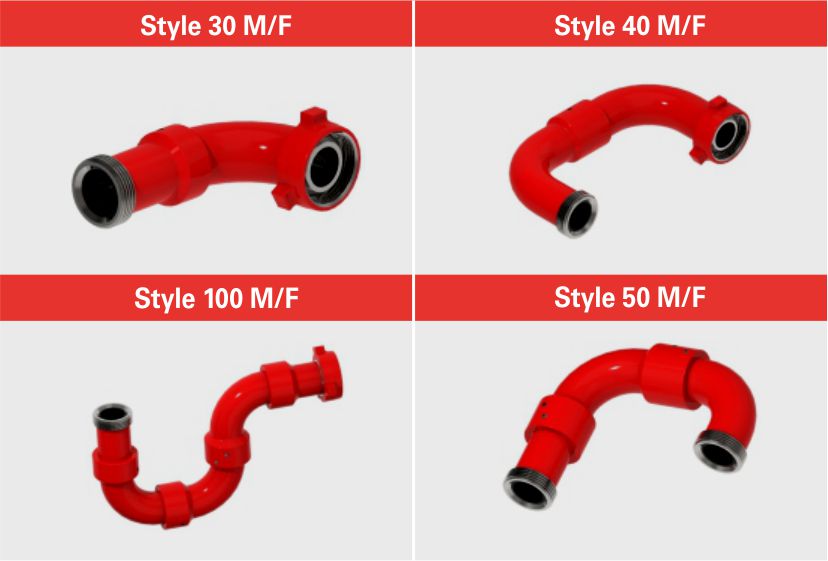

The long-life swivel joints are available in sizes up to 4” with working pressures up to 20000 psi and in styles 10 through 100. End connections are hammer union as standard, but other end connections can be manufactured to order.




Technical Specifications:


Models

Color Code

Cold Working Pressure

(psi)

Material

End Connections

Size

(Inches)






3/4”

1

1.1/4”

1.1/2”

2

3

4

Lower Pressure

Swivel Joints

Blue

1000

Carbon Steel

NPT









Beveled for welding





High Pressure

Short Radius

Swivel Joints

Sliver

6000

Alloy Steel

Female line

Pipe threads





Fig.602 Union

Extra High Pressure

Long Sweep

Swivel Joints

Olive Green (Sour Service)

7500

Alloy Steel

Fig.1002 Union






Olive Green (Sour Service)

10000

Alloy Steel

Fig.1502 Union




Black

10000

Alloy Steel

Female line

Pipe threads







Fig.1002 Union






Olive Green (Sour Service)

15000

Alloy Steel

Fig.2002 Union







Red

15000

Alloy Steel

Fig.1502 Union




Light Blue

20000

Alloy Steel

Fig.2002 Union







Notes:

1. All body materials meet ASTM or AISI standards.

2. Consult us for special sizes, styles, end connections, or packing units.
